Control Panels

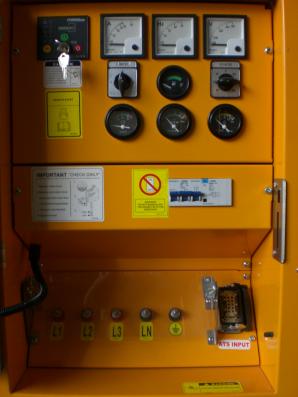

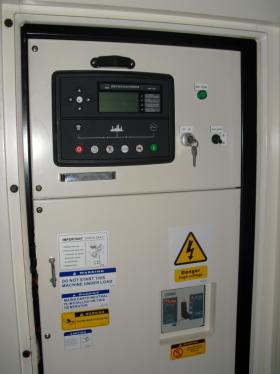

We have Digital DSE 7320 & DSE 7420 also manual control panels for different types of diesel generators. The DSE702 is a Manual/Auto Start Generator Controller that offers an excellent range of engine monitoring and protection features.

The Generator Control module has been designed to monitor

•   Low oil pressure of the genset,

•   High generator engine temperature,

•  Over speed and a user defined auxiliary input.

•   It also has the capability to monitor battery charging by utilising the WL terminal on the charge alternator.

When the Generator Control detects a fault condition it automatically shuts down the generator engine. The module also includes a remote start signal input. The input allows the module to be started from a pre-defined remote location.

Main Features

• Manual start

• Engine pre-heat

• Engine monitoring and protection features

• Protected solid state (PSS) outputs

• Front panel mounting

• Remote start

• LED indicators

Benefits

Multiple generator engine parameters are monitored simultaneously

Operation

Manual Mode:

•   The module is started using the on-board key/buttons

•   The user turns the key to the hand position

•   The generator engine pre-heat button is then pressed for the required time

•    The start button is then pressed to start the diesel engine

•   To stop the generator engine the key needs to be turned to the off position

Automatic Mode:

•   The key needs to be permanently left in the hand position

•   The module is powered up by the remote start signal

•  The pre-heat function is automatically carried out and then the generator engine is started

•   To stop the generator engine the remote switch is turned to the ‘off’ position
